Terminology
This page explains the main terms and concepts used in Blender and PME for newcomers and those looking to deepen their understanding.
Basic Blender Concepts

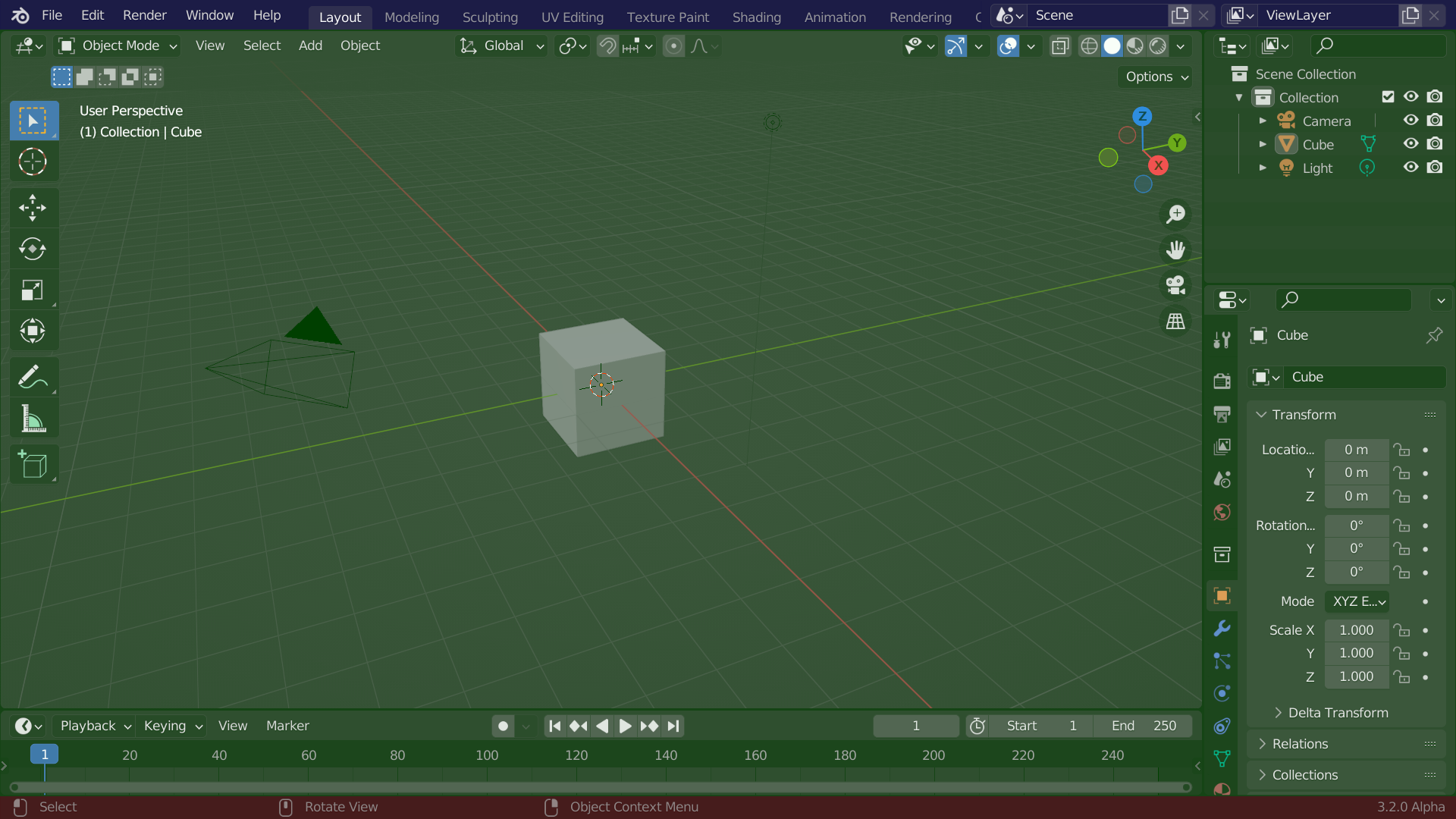

Area
A large workspace region within the Blender interface. Different editor types (such as the 3D Viewport, Outliner, etc.) each occupy an Area.
PME offers a feature called Toggle Side Area, allowing you to show or hide side regions (like sidebars) in an Area.
Areas may contain subregions called Regions, such as a toolbar or property shelf.
Context
Represents the current state of Blender, including:
The currently selected object
The active editing mode (e.g., Object Mode, Edit Mode)
Cursor position
Active tool
Other information depending on user actions
In Python:
# Retrieve the active object
active_obj = bpy.context.active_object
# Check the current mode
current_mode = bpy.context.mode
By leveraging the context, you can conditionally display or enable certain tools based on the current state (mode, selection, etc.).
Reference: Context (docs.blender.org)
Header
A horizontal bar located at the top or bottom of an Area. It usually contains menus, frequently used tool icons, and so forth.
PME allows you to add custom buttons to the header using Menu/Panel Extension.
Keymap
A collection of hotkey assignments that change depending on the Area type or editing mode.
Example: The G key is assigned to “move” in Object Mode but to “grab” in Sculpt Mode.
PME can help you tailor these keymaps further to fit your personal workflow.
Reference: Keymap (docs.blender.org)
Mode
Refers to the operational state of Blender (e.g., Object Mode, Edit Mode). Each mode has its own set of tools and actions.
PME’s Poll feature allows you to show or hide specific tools or menus based on the active mode.
Example: bpy.context.mode == 'EDIT_MESH'
Operator
A functional unit in Blender that performs a specific action (part of the bpy.ops module).
Can be assigned to hotkeys
Can appear on menus/buttons
Callable from Python scripts
Executable in Macros
Within PME, you can combine multiple operators using Macro Operators or Modal Operators to create custom tools.
Example: bpy.ops.mesh.subdivide()
Panel
A collapsible group of UI widgets, often found in sidebars or property areas.
PME allows for:
Creating new panels
Extending existing panels
Grouping panels
Hiding unneeded panels
Property
Refers to various data items in Blender (like object location, material settings, etc.) that are typically displayed as sliders, checkboxes, or fields in the UI.
In PME, you can:
Display and edit properties on menus/panels
Refer to them in scripts or Poll functions
Add custom properties via the Property Editor
Example: bpy.context.object.location

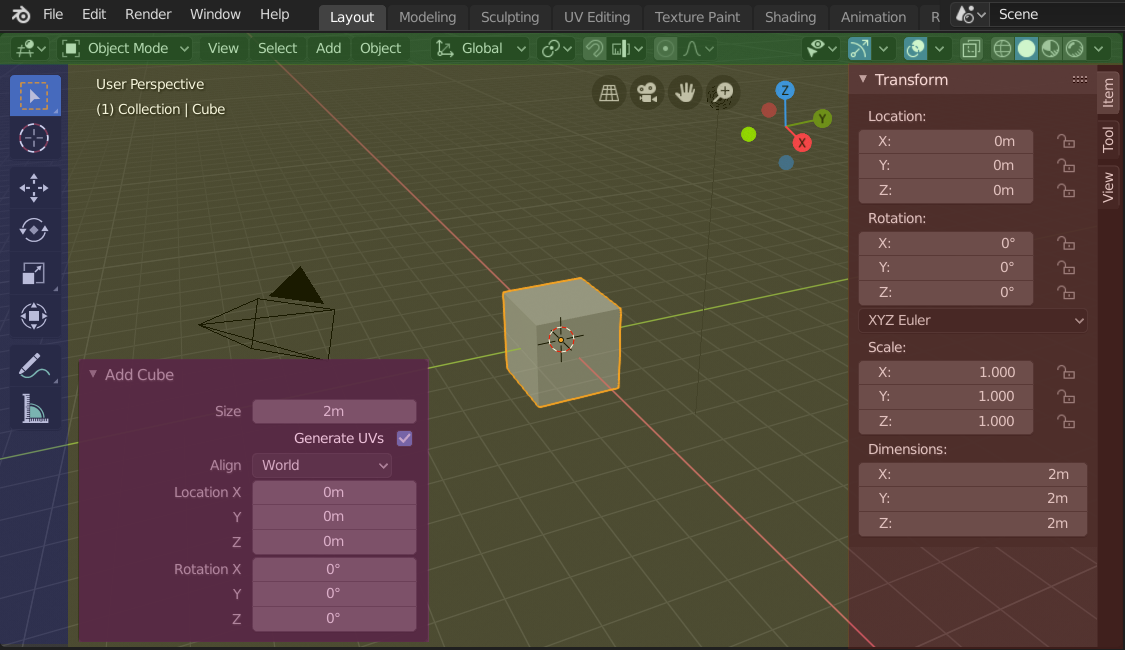

Region
A subdivided area within an Area, containing specific UI elements (tools, properties, etc.).
With PME’s Panel Group feature, you can add custom content to a Region.
Related: Area, Panel
Reference: Region (docs.blender.org)
PME-Specific Concepts
Slot
An individual element or slot within a menu. Each slot can be configured to:
Run a command
Display or edit a property
Invoke a sub-menu
Draw a custom layout
Related: Command Tab, Property Tab, Menu Tab, Custom Tab
Command Tab
One of the tabs in the Slot Editor that lets you run Python code or invoke operators directly.
Execute single-line Python scripts
Call custom functions
Manipulate variables or operators
Example: C.active_object.location.x += 1.0
Custom Tab
Another tab in the Slot Editor for creating more visually defined UI layouts without manual scripting.
Example:
L.box().label(text="Custom Layout")
Interactive Panels Mode
A PME mode that displays additional PME Tools buttons within every UI element, making it easier to:
Identify menu IDs
Configure panel extensions
Customize your UI
This mode is especially useful when learning PME, as it helps you visualize where various elements and menus are located.
Macro Operator
Allows you to execute multiple operators in sequence. In the PME Macro Operator Editor, you can:
Record operator sequences
Adjust operator parameters
Manage execution flow
It is invaluable for bundling complex workflows into a single click.
Modal Operator
A real-time, interactive operator that responds to continuous user input. You can create your own Modal Operators with PME’s Modal Operator Editor, enabling:
Reactions to mouse movements
Key events and state changes
Real-time feedback and updates
Perfect for building custom interactive tools.
Poll Method
A Python function used to determine whether a menu or tool is currently usable. It must return True if available, or False otherwise.
For example:
ao = C.active_object; return ao and ao.type == 'MESH'
Common use cases include:
Enabling/disabling UI elements based on the current mode
Restricting features to certain object types
Preventing errors by hiding invalid tools
Slot Editor
The central UI for defining how PME menus/buttons behave. It includes multiple tabs such as:
Command (for code execution)
Property (for property display)
Menu (for calling other PME’s menus)
Hotkey (for invoking shortcuts)
Custom (for custom layouts)
It’s designed so you can set up everything through a graphical interface, even if you’re new to scripting.
Advanced Concepts
Event System
Blender’s input handling mechanism, which tracks keyboard and mouse events. It is essential for:
Modal Operators
Custom hotkeys
Interactive tools
For example:
E.ctrl and E.shift and message_box("Ctrl+Shift Pressed")
Layout System
Blender’s system for constructing UI layouts. PME relies on this system to:
Place labels, buttons, and property fields
Position operators and custom widgets
Structure UI elements hierarchically
For example:
L.box().label(text=text, icon=icon, icon_value=icon_value)
Operator Execution Context
Determines how an operator is executed. The two most common contexts are:
INVOKE_DEFAULT An interactive mode in which Blender waits for additional user input, such as mouse positioning or pop-up confirmation.
EXEC_DEFAULT Runs the operator immediately with preset parameters, often used in scripts or macros.
Example:
# Move an object interactively based on mouse input
bpy.ops.transform.translate('INVOKE_DEFAULT')
# Move an object 5.0 along the X axis without user input
bpy.ops.transform.translate('EXEC_DEFAULT', value=(5.0, 0.0, 0.0))
